Vibrocompaction Design for San Jose Sites

Together, we solve the challenges of tomorrow.

LEARN MORE →

The most expensive mistake we see in San Jose isn't the upfront cost of soil investigation—it's the assumption that a standard shallow foundation will perform on the valley's loose alluvial deposits without targeted ground improvement. When a four-story office building near the Guadalupe River Parkway began showing differential settlement within two years of completion, the root cause traced back to untreated liquefiable sands at depth. Vibrocompaction design bridges the gap between raw site data and a buildable specification that achieves the required relative density. Our approach starts with a careful interpretation of subsurface conditions, often leveraging in-situ density testing to benchmark existing compaction and CPT soundings to map the vertical extent of problematic layers before selecting vibroflot spacing and energy input. In a seismic zone where a Cascadia or San Andreas event could trigger widespread liquefaction, getting the design wrong is not an option.

In San Jose's alluvial basin, vibrocompaction design that ignores fines content variability will underdeliver on density—every percentage point above 12 percent fines demands a tighter grid and higher energy input.

Approach and scope

A recent project in the Berryessa district involved a 65-foot-thick layer of loose sandy silt overlying a stiff clay stratum, with groundwater at eight feet—conditions typical of the Santa Clara Valley's alluvial fan system. The contractor initially proposed a generic triangular grid, but our review of the grain-size distribution indicated a fines content exceeding 15 percent in several lenses, which immediately raised the required backfill volume and shifted the design to a tighter square pattern with staged compaction passes. We specified a target relative density of 75 percent below the water table and 85 percent above it, with performance verified through post-treatment CPT correlation rather than settlement plate monitoring alone. The final layout used a 160 kW electric vibroflot operating at 1800 rpm, with column spacing reduced from 10 feet to 8 feet in the critical zone. Quality control included continuous ammeter records and pre- versus post-treatment tip resistance profiles, cross-checked against the project’s geotechnical baseline report prepared under ASCE 7-22 Section 11.8.3 guidelines for site-specific ground motion hazards.
Vibrocompaction Design for San Jose Sites

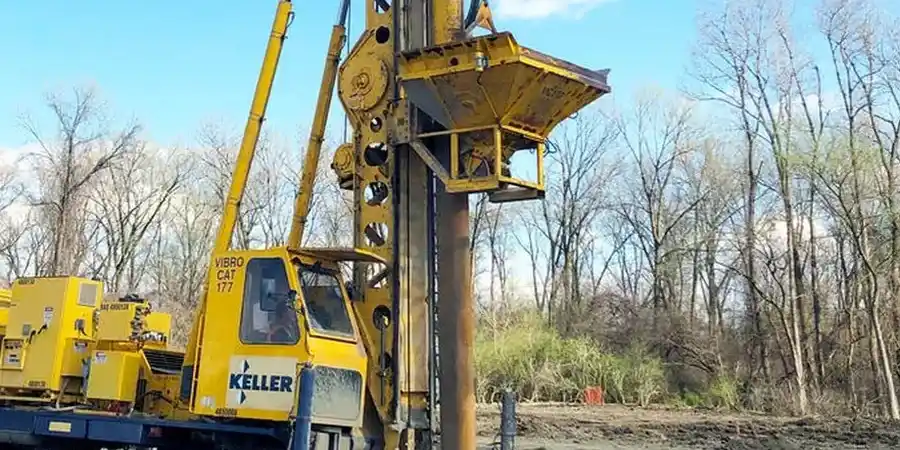

Technical reference image — San Jose

Site-specific factors

San Jose sits at an elevation of roughly 85 feet above sea level, but what matters more for vibrocompaction design is the 200 to 500 feet of unconsolidated Quaternary alluvium beneath downtown, deposited by the Guadalupe River and Coyote Creek systems. The USGS ShakeMap for a magnitude 7.0 rupture on the Hayward Fault—located less than 15 miles east—projects peak ground accelerations exceeding 0.5g across much of the city, enough to trigger cyclic liquefaction in any saturated granular soil with an SPT blow count below 15. In the Alviso district, where fill overlies Bay Mud, the risk compounds because lateral spreading can tear apart compacted columns that were designed solely for vertical settlement control. Our designs explicitly account for the M7.0 scenario per IBC Section 1805 and the site-specific probabilistic seismic hazard analysis required for Risk Category III and IV structures, ensuring that the improvement depth extends through the entire liquefiable profile and that the treatment perimeter extends far enough to intercept lateral strain.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering1.com

Technical parameters

ParameterTypical value
Target relative density (Dr)70–85% depending on seismic demand
Typical treatment depthUp to 100 ft with bottom-feed vibroflot
Vibroflot power range130–260 kW, electric or hydraulic
Grid patternTriangular or square, 5–12 ft spacing
Backfill gradationClean sand, D15 ≥ 0.3 mm, fines < 5%
Quality control methodPre-/post-CPT, SPT verification borings
Liquefaction resistance (N1)60csTarget > 25 blows/ft for design earthquake

Complementary services

01

Liquefaction mitigation design

Full design of vibrocompaction grids targeting a design earthquake of M7.0–M7.5, including cyclic stress ratio analysis, fines correction, and specification of post-treatment CPT acceptance criteria. Suitable for mid-rise structures, warehouse pads, and creek-adjacent developments.

02

Densification of uncontrolled fill and artificial ground

Design tailored to heterogeneous fills common in North San Jose and Alviso, where historical placement without engineered compaction has left void ratios above 0.7. We specify energy levels, grid geometry, and verification testing that account for debris, organics, and variable moisture conditions.

Relevant standards

ASCE 7-22 Minimum Design Loads and Associated Criteria for Buildings and Other Structures, IBC 2024 Section 1805 — Deep Foundations and Ground Improvement, ASTM D1586 Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling of Soils, ASTM D2487 Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System), FHWA-NHI-16-072 Ground Improvement Methods — Reference Manual Volume II

Common questions

What is the typical cost range for vibrocompaction design on a San Jose commercial lot under one acre?

For a commercial lot under one acre in San Jose, our vibrocompaction design fee typically ranges from US$1,320 to US$5,820 depending on the number of treatment zones, depth of improvement required, and the complexity of the liquefaction analysis. A straightforward single-layer deposit with uniform CPT data falls toward the lower end, while sites with interbedded silts, variable groundwater, or a requirement for time-history deformation modeling move toward the upper end. We carry out a fixed-fee proposal after reviewing the existing geotechnical investigation.

How does vibrocompaction compare to stone columns for liquefaction mitigation in the Santa Clara Valley?

Vibrocompaction works best in clean sands with less than 12–15 percent fines, which are common in San Jose’s deeper alluvial channels, and it is generally more cost-effective per square foot than stone columns because it uses the in-situ soil as the primary fill material. Stone columns become the better choice when fines exceed 20 percent or when the project requires both drainage and reinforcement, such as in the Bay Mud transition zones near Alviso. Our feasibility assessment always includes a side-by-side comparison of both methods before committing to a design direction.

What verification testing do you specify after vibrocompaction?

We specify a combination of pre- and post-treatment CPT soundings at the centroid of each compaction cell, with a minimum of one verification CPT per 2,500 square feet of treated area. Tip resistance and sleeve friction are compared directly to the pre-treatment baseline, and we require a minimum 25 percent increase in normalized tip resistance (qc1N) throughout the target zone. On critical structures, we also specify post-treatment SPT borings with split-spoon sampling to confirm the (N1)60cs values meet the design target, following ASTM D1586 procedures.

Can vibrocompaction be performed adjacent to existing structures in downtown San Jose?

Yes, but it requires a careful vibration monitoring plan. In downtown San Jose, where lot-line construction puts vibroflots within 10 to 15 feet of neighboring foundations, we design the compaction sequence to start farthest from the structure and advance inward, using lower initial energy and gradual ramp-up. We specify peak particle velocity limits of 0.5 inches per second for historic masonry buildings and 1.0 inch per second for reinforced concrete, with real-time seismograph monitoring at the nearest sensitive receptor during all compaction passes.
